Torque (4.8V): 6.0 kg-cm / 83.3 oz-in
Torque (6.0V): 7.5 kg-cm / 104.2 oz-in
Torque (7.4V): 9.2 kg-cm / 127.8 oz-in
Torque (8.2V): 10.2 kg-cm / 141.7 oz-in
Speed: 0.17 s (4.8V) / 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 21 g (0.74 oz)
Dimension：29 x 13 x 28.7 mm
| Technical | |
| Torque (kg-cm) | 6.0 (4.8V) / 7.5 (6.0V) / 9.2 (7.4V) / 10.2 (8.2V) |
| Working Voltage | 6.0V ~ 8.4 V DC Volt |
| Dead Band | 2x Ball Bearing |
| Speed | 0.17 s (4.8V) / 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Gear | Metal Alloy Gear |
| Working Frequency | 1520μs / 333Hz |
| Motor | Coreless Motor |

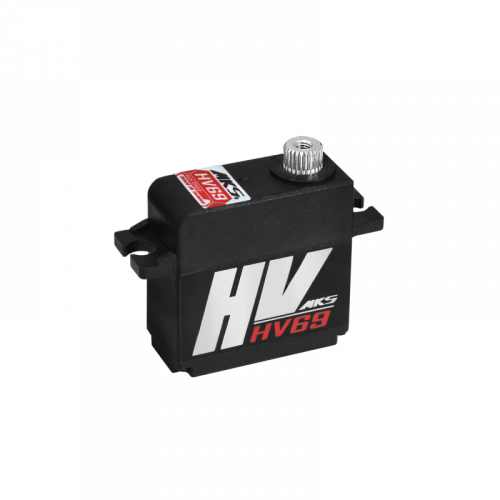

HV69
- Product Code: S0022012
Tags: Airplane
