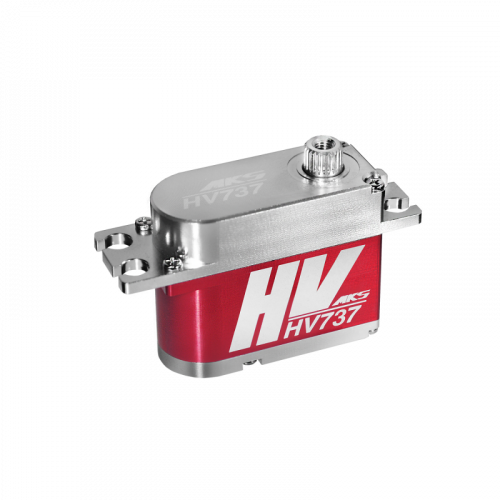

High Speed Servo for Airplane / Jet / Electric Plane
- 12 x 20 mm coreless motor, High efficient, More durable.
- 9mm VR, Ultrahigh-resolution.
- New type gear structure, Tiny backlash, High durable.
Torque (6.0V): 8.3 kg-cm / 115.3 oz-in
Torque (7.4V): 9.1 kg-cm / 126.4 oz-in
Torque (8.2V): 10.2 kg-cm / 141.7 oz-in
Speed: 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Weight: 38.55 g (1.36 oz)

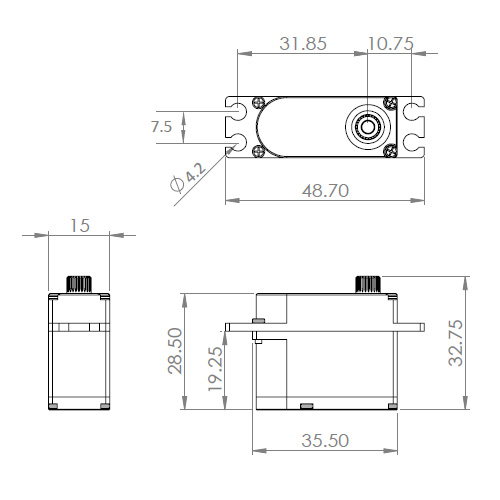

Dimension : 35.5 x 15 x 28.5 mm
| Technical | |
| Torque (kg-cm) | 8.3 (6.0V) / 9.1 (7.4V) / 10.2 (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volts |
| Dead Band | 0.001 ms (Default) |
| Speed | 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V) |
| Gear | Metal Alloy Gear |
| Working Frequency | 1520μs / 333Hz |
| Bearing | 2x Ball Bearing |
| Motor | Coreless Motor |
HV737
- Product Code: S0022001
Tags: airplane
