Torque (6.0V): 29.5 kg-cm / 409.7 oz-in
Torque (7.4V): 36.5 kg-cm / 506.9 oz-in
Torque (8.2V): 40.4 kg-cm / 561.1 oz-in
Speed: 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 75.45 g (2.66 oz)

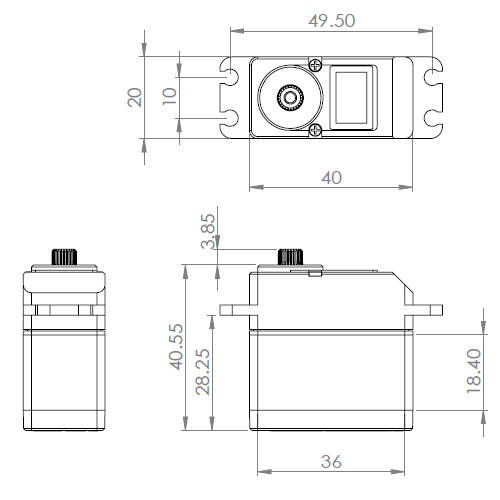

Dimension：40 x 20 x 40 mm
| Technical | |
| Torque (kg-cm) | 29.5 (6.0V) / 36.5 (7.4V) / 40.4 (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volts |
| Dead Band | 0.0008ms (Default) |
| Speed | 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Gear | Metal Alloy Gear |
| Working Frequency | 1520μs / 333Hz |
| Bearing | 2x Ball Bearing |
| Motor | Japanese-made Coreless Motor |

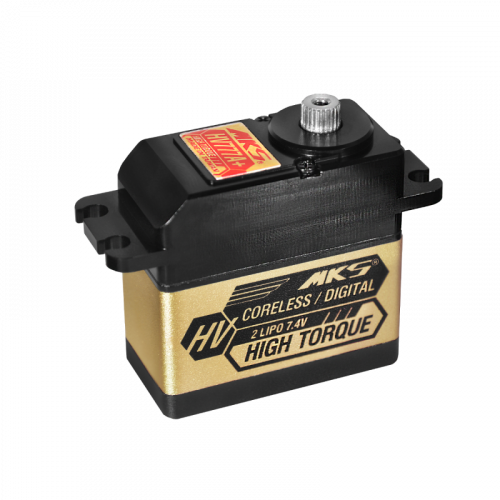

HV777A+
- Product Code: S0011007
Tags: airplane
