Torque (6.0V): 31.4 kg-cm / 436 oz-in
Torque (7.4V): 38.8 kg-cm / 538.8 oz-in
Torque (8.2V): 43 kg-cm / 597.1 oz-in
Speed: 0.135 s (6.0V) / 0.110 s (7.4V) / 0.098 s (8.2V)
Weight: 74 g (2.64 oz)

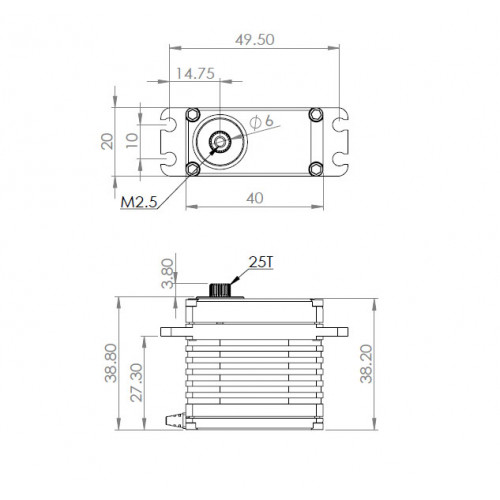

Dimension：40 x 20 x 38.8 mm
| Technical | |
| Torque (kg-cm) | 31.4 (6.0V) / 38.8 (7.4V) / 43 (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volts |
| Dead Band | 0.0007 ms (Default) |
| Speed | 0.135 s (6.0V) / 0.110 s (7.4V) / 0.098 s (8.2V) |
| Gear | Metal Alloy Gear |
| Working Frequency | 1520μs / 333Hz |
| Bearing | 2x Ball Bearing |
| Motor | Japanese-made Coreless Motor |

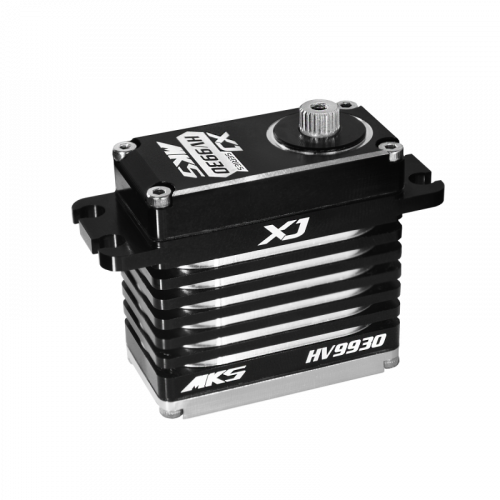

HV9930
- Product Code: S0027001
Tags: airplane
