Ideal For 1/10 , 1/8, 1/5 Scale Buggies, Stadium Truck, Giant-Scale Aircraft, 600~700 Helis CCPM.
- Three Coppers Bushings / Strong, Accurate
- Waterproof Bearing / Dustproof, Waterproof
- Metal Alloy Gear / Wear-resistant, Smooth
- Middle Aluminium Alloy Case / High Heat Dissipation
- Japan High Quality Coreless Motor / Competition Level, High performance, High response, equal level as DS670.
Providing high torque, incredible efficiency, and low power consumption.
Torque (6.0V): 16.6 kg-cm / 230.5 oz-in
Torque (6.8V): 20.3 kg-cm / 281.9 oz-in
Torque (7.4V): 22.1 kg-cm / 306.9 oz-in
Torque (8.2V): 23 kg-cm / 319.4 oz-in
Speed: 0.159 s (6.0V) / 0.140 s (6.8V) / 0.129 s (7.4V) / 0.115 s (8.2V)
Weight: 57.64 g (2.03 oz)

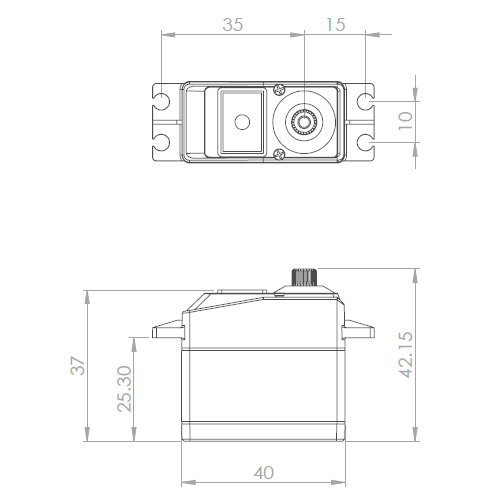

Dimensions:40 x 20 x 37 mm
Technical | |
Torque (kg-cm) | 16.6 (6.0V) / 20.3 (6.8V) / 22.1 (7.4V) / 23 (8.2V) |
Working Voltage | 6.0V ~ 8.4V DC Volts |
Dead Band | 0.0008ms (Default) |
Speed | 0.159 s (6.0V) / 0.140 s (6.8V) / 0.129 s (7.4V) / 0.115 s (8.2V) |
Gear | Metal Alloy Gear |
Working Frequency | 1520μs / 333Hz |
Bearing | 2x Ball Bearing |
Motor | Japanese-made Coreless Motor |

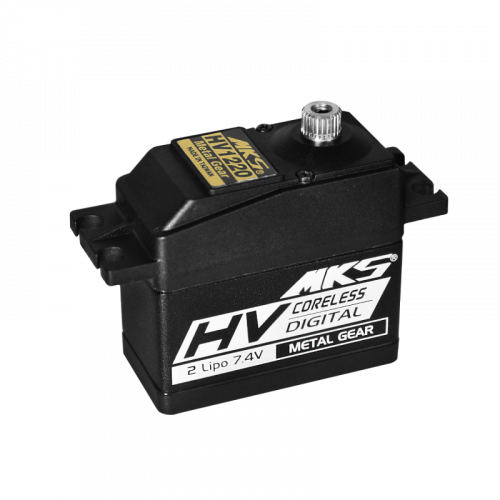

HV1220
