Torque (4.8V): 3.19 kg-cm / 44.36 oz-in
Torque (5.0V): 3.32 kg-cm / 46.1 oz-in
Speed: 0.120 s (4.8V) / 0.110 s (5.0V)
Weight: 9.5 g (0.33 oz)

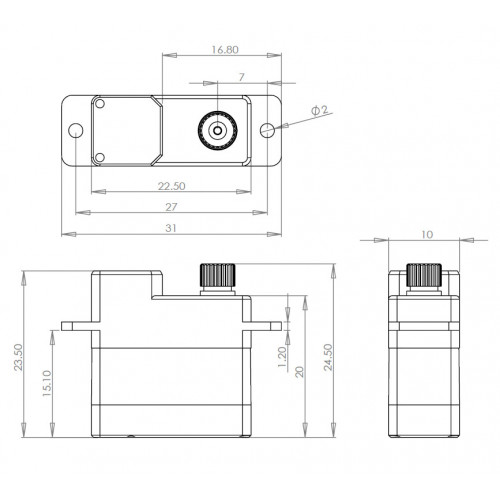

Dimension：22.5 x 10 x 23.5 mm
NOTE: Use with 4 cell Nicd/NiMH battery or use UBEC (4.8V~5.0V)
| Technical | |
| Torque (kg-cm) | 3.19 (4.8V) / 3.32 (5.0V) |
| Working Voltage | 4.8V ~ 5.0V DC Volt |
| Dead Band | 0.001 ms (Default) |
| Speed | 0.120 s (4.8V) / 0.110 s (5.0V) |
| Gear | Metal Alloy Gear |
| Working Frequency | 1520μs / 333Hz |
| Bearing | 1 Oil-retaining Bearing + 2x Jewel Bearing |
| Motor | Coreless Motor |

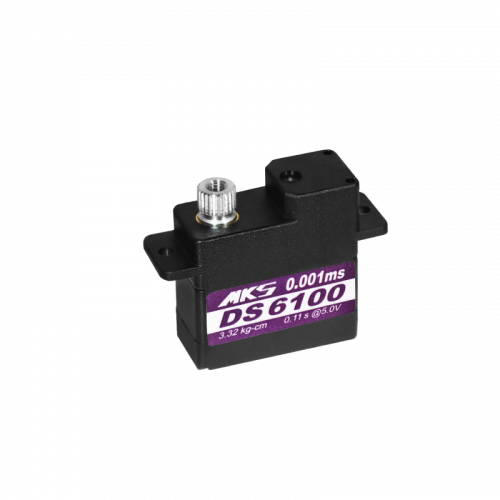

DS6100
- Product Code: S0015005
Tags: gliders
