Torque (6.0V): 2.6 kg-cm / 36.1 oz-in
Torque (7.4V): 3.0 kg-cm / 41.7 oz-in
Torque (8.2V): 3.4 kg-cm / 47.2 oz-in
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 9.84 g (0.34 oz)

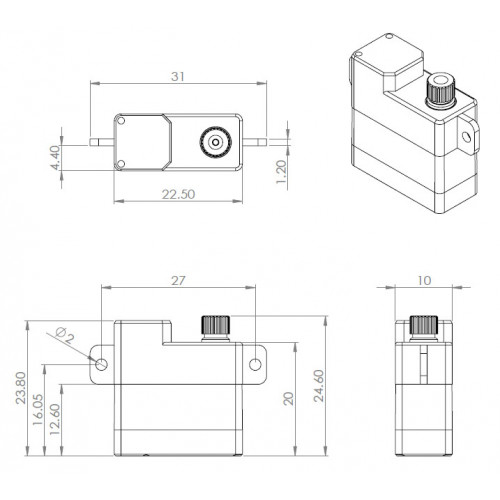

Dimension：22.5 x 10 x 23.5 mm
| Technical | |
| Torque (kg-cm) | 2.6 (6.0V) / 3.0 (7.4V) / 3.4 (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volt |
| Dead Band | 0.001 ms (Default) |
| Speed | 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Working Frequency | 1520μs / 333Hz |
| Bearing | 1 Oil-retaining Bearing + 2x Jewel Bearing |
| Motor | Coreless Motor |

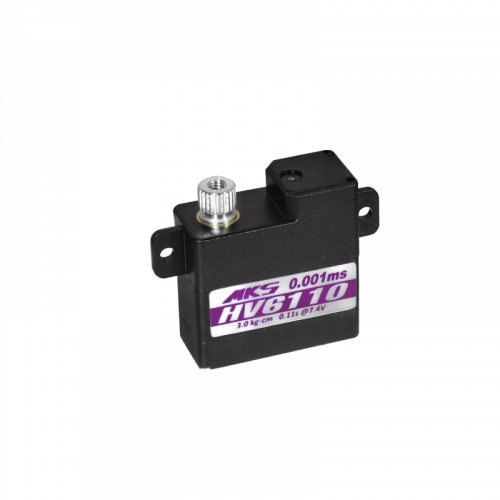

HV6110
- Product Code: S0022006
Tags: gliders
