Torque (6.0V): 6.0 kg-cm / 83.3 oz-in
Torque (7.4V): 7.6 kg-cm / 105.5 oz-in
Torque (8.2V): 8.1 kg-cm / 112.5 oz-in
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 22.5 g (0.79 oz)

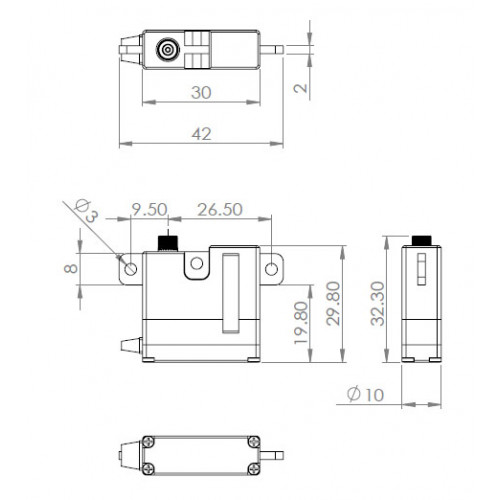

Dimension: 30 x 10 x 29.8 mm
| Technical | |
| Torque (kg-cm) | 6.0 (6.0V) / 7.6 (7.4V) / 8.1 (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volts |
| Dead Band | 0.001 ms (Default) |
| Speed | 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Gear | Metal Alloy Gear |
| Working Frequency | 1520μs / 333Hz |
| Bearing | 3x Ball Bearing + 2x Jewel Bearing |
| Motor | Coreless Motor |

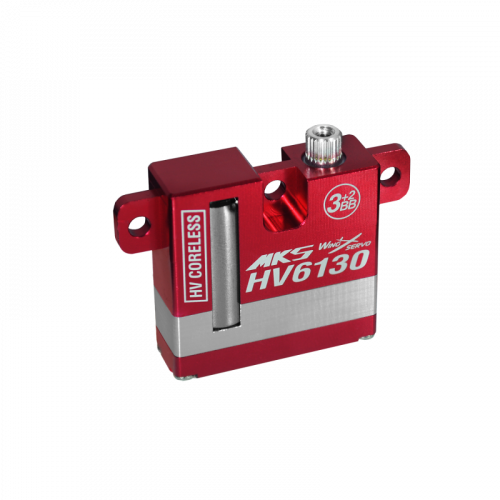

HV6130
- Product Code: S0022009
Tags: gliders
