No Mounting Tab version
For DLG, HLG, F3K
Torque (3.7V): 1.4 kg-cm / 19.4 oz-in
Torque (6.0V): 2.3 kg-cm / 31.9 oz-in
Torque (7.4V): 2.8 kg-cm / 38.9 oz-in
Torque (8.2V): 3.3 kg-cm / 45.8 oz-in
Speed: 0.21s (3.7V) / 0.13s (6.0V) / 0.10s (7.4V) / 0.09s (8.2V)
Weight: 7.4 g (+0.1 g) / 0.260 oz (+0.003 oz)
Dimension: 23 x 9 x 16.7 mm
| Technical | |
| Torque (kg-cm) | 1.4 (3.7V) / 2.3 (6.0V) / 2.8 (7.4V) / 3.3 (8.2V) |
| Working Voltage | 3.5V ~ 8.4V DC Volts |
| Dead Band | 0.001 ms (Default) |
| Speed | 0.21s (3.7V) / 0.13s (6.0V) / 0.10s (7.4V) / 0.09s (8.2V) |
| Gear | Metal Alloy Gear |
| Working Frequency | 1520μs / 333Hz |
| Bearing | 1x Ball bearing + 1x Oil-retaining Bearing + 2x Jewel Bearing |
| Motor | Coreless Motor |

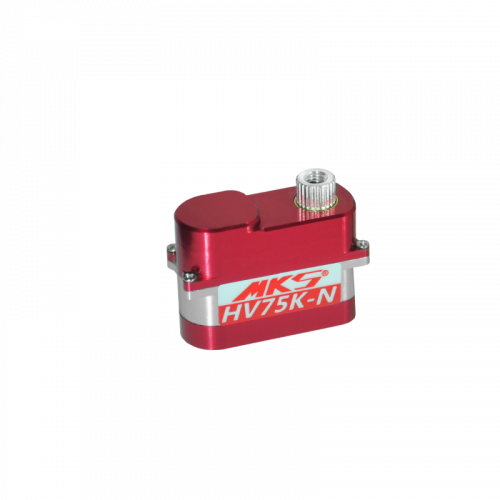

HV75K-N
- Product Code: S0022008
Tags: gliders
